Quick Start

This scenario teaches you the basic operations of Exastro IT Automation by using a simple example: changing a hostname.

The goal of this scenario is to help you understand the greatest benefit of automation with Exastro IT Automation.

For this scenario, you’ll need to perform the following preparatory steps:

• Preparation

  1. Create a Parameter Sheet

  2. Configure Work Items

  3. Register an Ansible Playbook

  4. Link Movements and Ansible Playbooks

  5. Link Parameter Sheet Items and Ansible Playbook Variables

  6. Register Devices

After completing the preparatory steps, you’ll perform the minimum necessary operations, such as registering an operation overview and configuring parameters, to repeatedly execute the task.

• Repetitive Task (1st Time)

  1. Register Operation Overview (1st Time)

  2. Set Parameters (1st Time)

  3. Execute Task (1st Time)

• Repetitive Task (2nd Time)

  1. Register Operation Overview (2nd Time)

  2. Set Parameters (2nd Time)

  3. Execute Task (2nd Time)

The goal of this scenario is for you to understand that once you complete the initial setup, you can perform the same task repeatedly with simple operations.

Prerequisites

The following conditions are necessary to run this scenario:

1. An available server (RHEL8).

2. The user must be able to log in via SSH and have full sudoer privileges.

3. A workspace for the task.

Preparation

Design the format for system configuration information.

You don’t need to manage all system information as parameters. You can add or review them as needed when management becomes necessary in the future.

Create a Parameter Sheet

Parameter Sheet Creation, you manage parameter sheets for registering configuration values (parameters) used during operations.

Create a parameter sheet to manage hostnames.

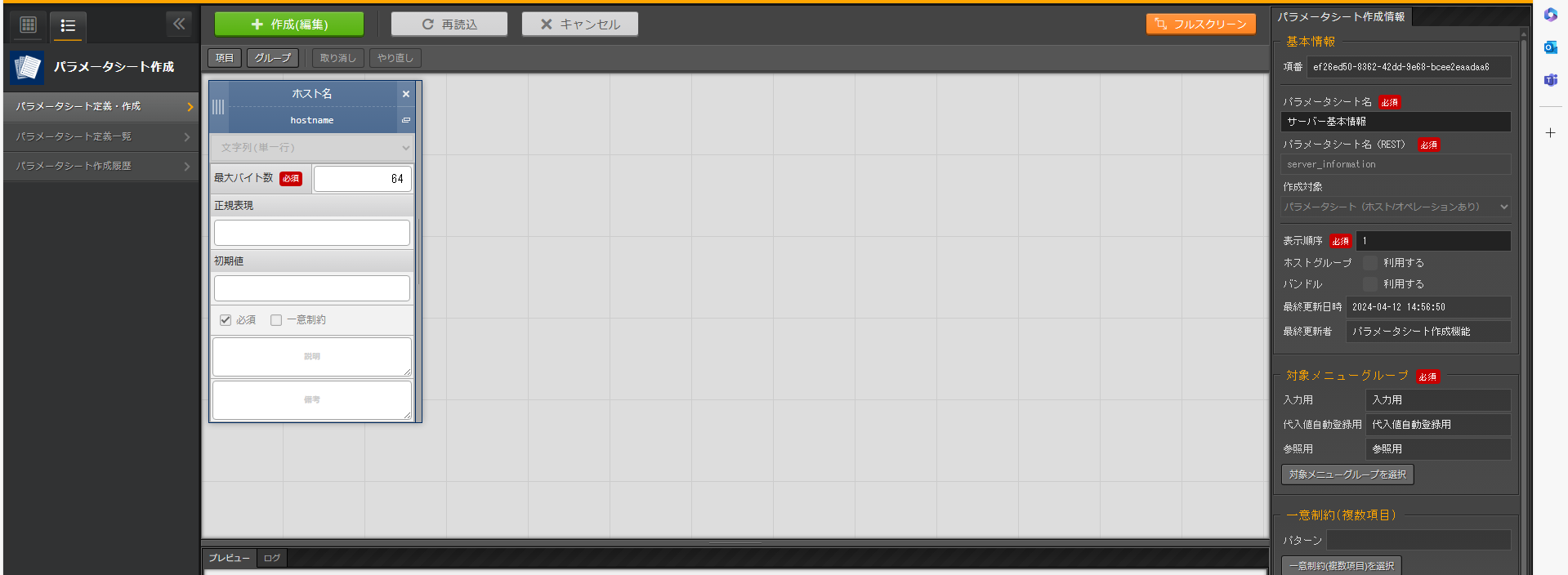

Parameter Sheet Creation ▶ Parameter Sheet Definition/Creation, Create a parameter sheet named “Server Basic Information” to manage hostnames.

Table 53 Parameter Sheet Creation (Server Basic Information) - Item Settings

Setting Item	Setting Value (Item 1)
Field Name	Hostname
Field Name(For Rest API)	Hostname
Input Method	String(Single Line)
Maximum Bytes	64
Regexp
Initial Value
Required	✓
Unique Constraint
Description
Remarks

Table 54 Configuration values for the creation of the Server Basic Information Parameter Sheet

Setting Item	Setting Value
Item Number	(Automatic Input)
Parameter Sheet Name	Server Basic Information
Parameter Sheet Name(REST)	Server_Information
Object To Be Created	Parameter Sheet(Hosted with Operations)
Display Order	1
Bundle Usage	Uncheck “Use” (Disabled)
Last Updated Timestamp	(Automatic Input)
Last Updated User	(Automatic Input)

Configure Work Items

To register a work procedure, you define a Movement (Job), which is the work unit handled in Exastro IT Automation.

In Exastro IT Automation, work is managed in units called Movements. A Movement corresponds to a work item in a work procedure manual.

A Movement is used to associate IaC (Infrastructure as Code) like an Ansible Playbook, or to link variables within the IaC to setting values in a parameter sheet.

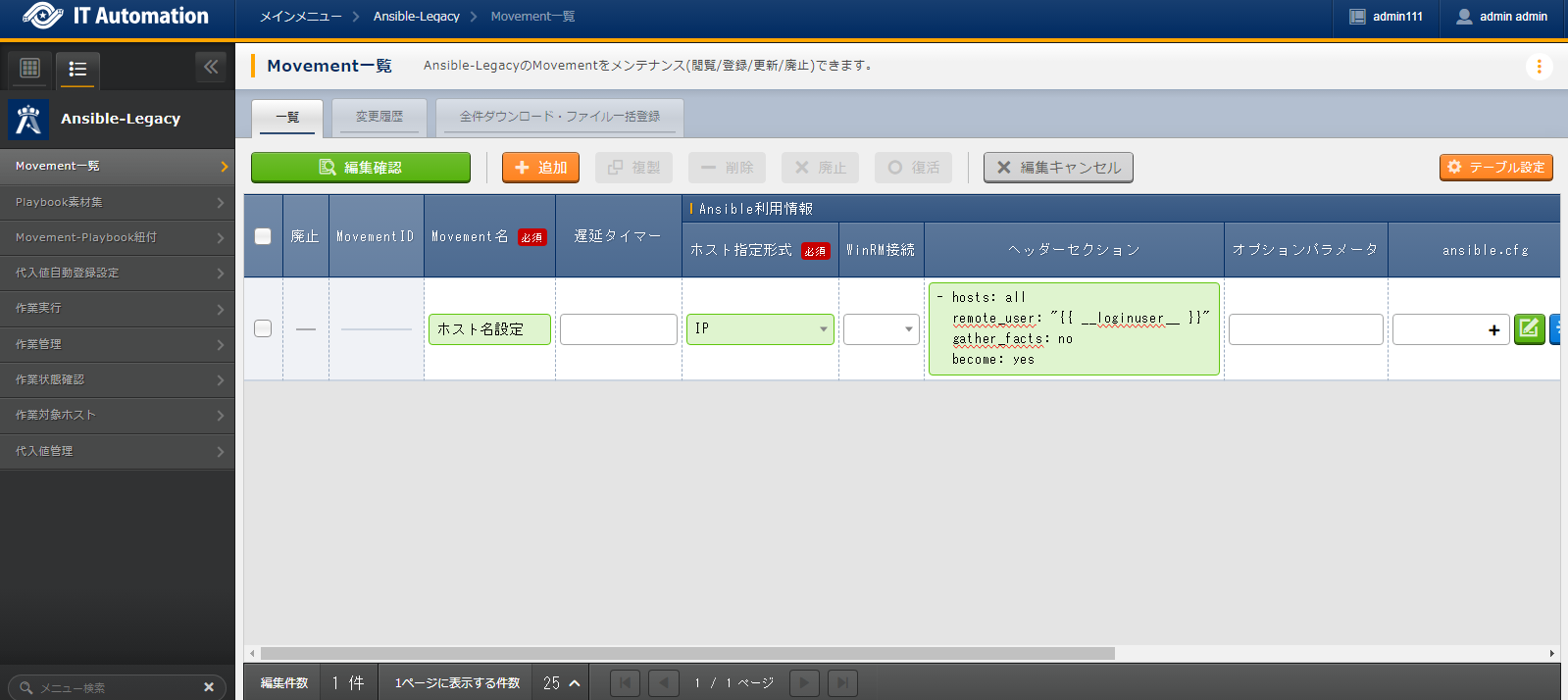

:menuselection: From Ansible-Legacy –> Movement list, you register a Movement for hostname settings.

Table 55 Movement Information Settings

Movement Name	Ansible Usage Information
	Host Specification Format	Header Section
Hostname settings	IP	*See the Header section.

Listing 259 Header Section

- hosts: all
  remote_user: "{{ __loginuser__ }}"
  gather_facts: no
  become: yes

Register an Ansible Playbook

You will now register an Ansible Playbook. An Ansible Playbook corresponds to a command described in an operation manual.

In Ansible-Legacy mode, it is assumed that you will use a Playbook that you have created yourself.

A benefit of using Ansible-Legacy mode is the ability to freely create procedures by developing Playbooks that suit your specific needs.

However, to use Ansible-Legacy mode, you need knowledge of Playbook creation, as you must create the Playbooks yourself.

In this scenario, you’ll use the following Playbook. Please copy the code below and create hostname.yml in YAML format.

Listing 260 hostname.yml

- name: Set a hostname
  ansible.builtin.hostname:
    name: "{{ hostname }}"

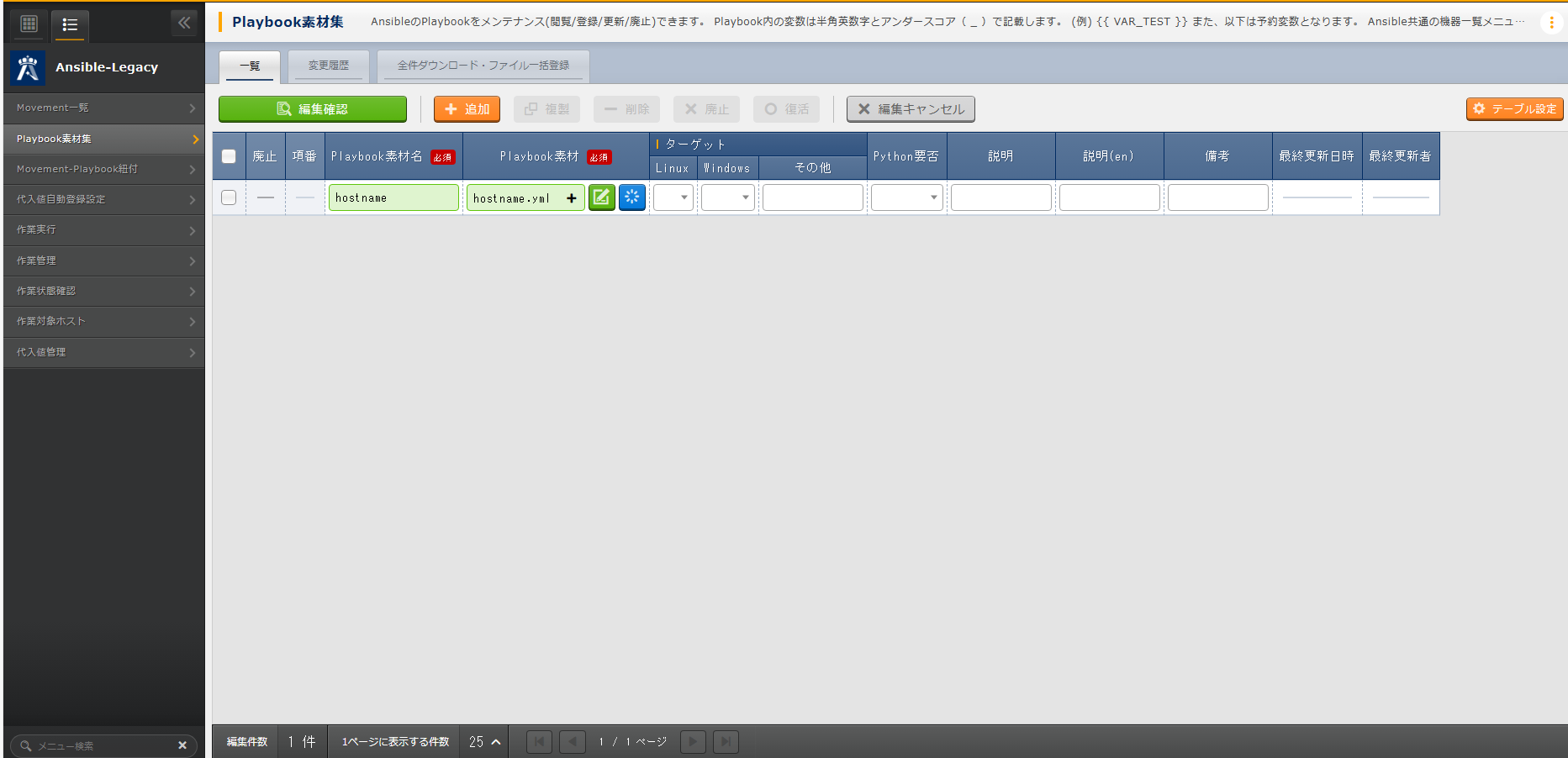

Ansible-Legacy ▶ Playbook Library, you’ll register the Playbook mentioned above.

Table 56 Ansible Playbook Information registration

Playbook Material Name	Playbook Material
hostname	hostname.yml

Link Movements and Ansible Playbooks

You will now associate an Ansible Playbook with the defined Movement. Additionally, you will link the variables within the Ansible Playbook to the parameter sheet items registered in Create a Parameter Sheet.

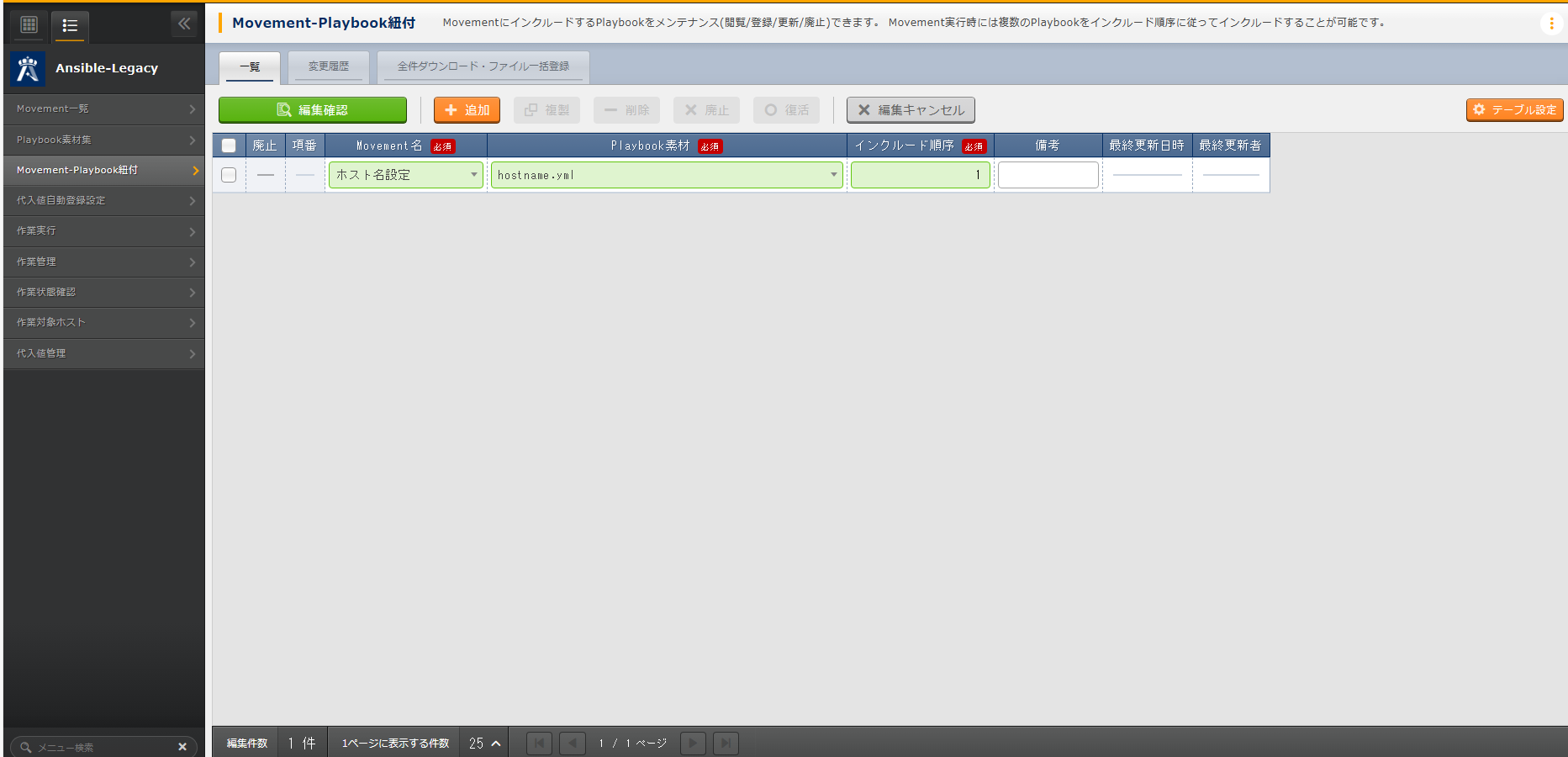

Ansible-Legacy ▶ Movement-Role Association, you will now associate a Movement with an Ansible Playbook.

In this scenario, we will use hostname.yml.

Table 57 Registering Movement-Playbook Association Information

Movement Name	Playbook Material	Include order
Hostname settings	hostname.yml	1

Link Parameter Sheet Items and Ansible Playbook Variables

In hostname.yml, you can set the hostname for the target server by assigning the hostname to the hostname variable.

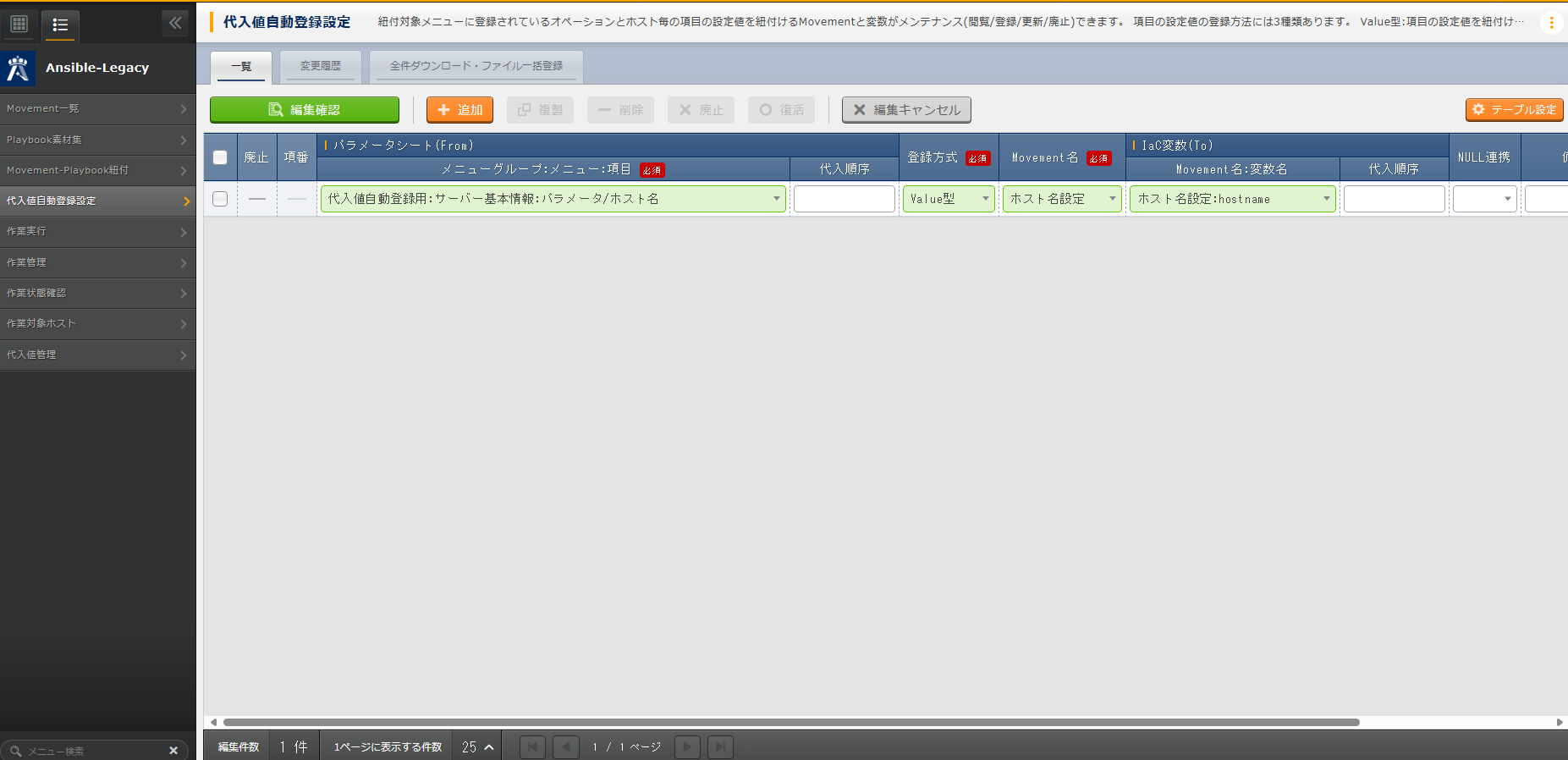

Ansible-Legacy ▶ Auto-Assignment Registration Settings You will now configure the settings to assign the parameter from the hostname field in the Server Basic Information Parameter Sheet to the hostname variable in the Ansible Playbook.

Table 58 Automatic value assignment settings

Parameter Sheet(From)	Registration Method	Movement Name	IaC Variable(To)
Menu Group:Menu:Item			Movement Name:Variable Name
For Automatic Value Registration:Server Basic Information:Hostname	Value Type	Hostname Settings	Hostname Settings:hostname

Register Devices

Register the target servers in the device list.

Ansible Common ▶ Device list,you register the connection information for the target servers.

Table 59 Device list settings

HW Device Type	Host Name	IP Address	Login Password	SSH Key Authentication Information	Ansible Usage Information
			User	SSH Private Key File	Legacy/Role Usage Information
					Authentication Method
SV	server01	192.168.0.1 *Set a proper IP address	Connection Username	(Private Key File)	Key Authentication(No Passphrase)

Tip

In this scenario, we’ll use key authentication, but you can also use password authentication. Please change the authentication method as needed, depending on how you log in to the target server.

Repetitive task (1st time)

Before we consider the specific parameter settings and work procedures, we’ll start by creating a work plan. First, let’s briefly organize the key information: what to do, how to do it, when to do it, and which devices to do it on.

Table 60 Work Approach

Execution Date And Time	2024/04/01 12:00:00
Target	Target Server(RHEL8)
Work Details	Hostname Change

Register Operation Overview (1st time)

When you register an operation, you define the work summary for carrying out the task. You must create one operation for each task, and you should not reuse operations.

Based on the work policy you’ve already decided on, let’s fill in the operation details.

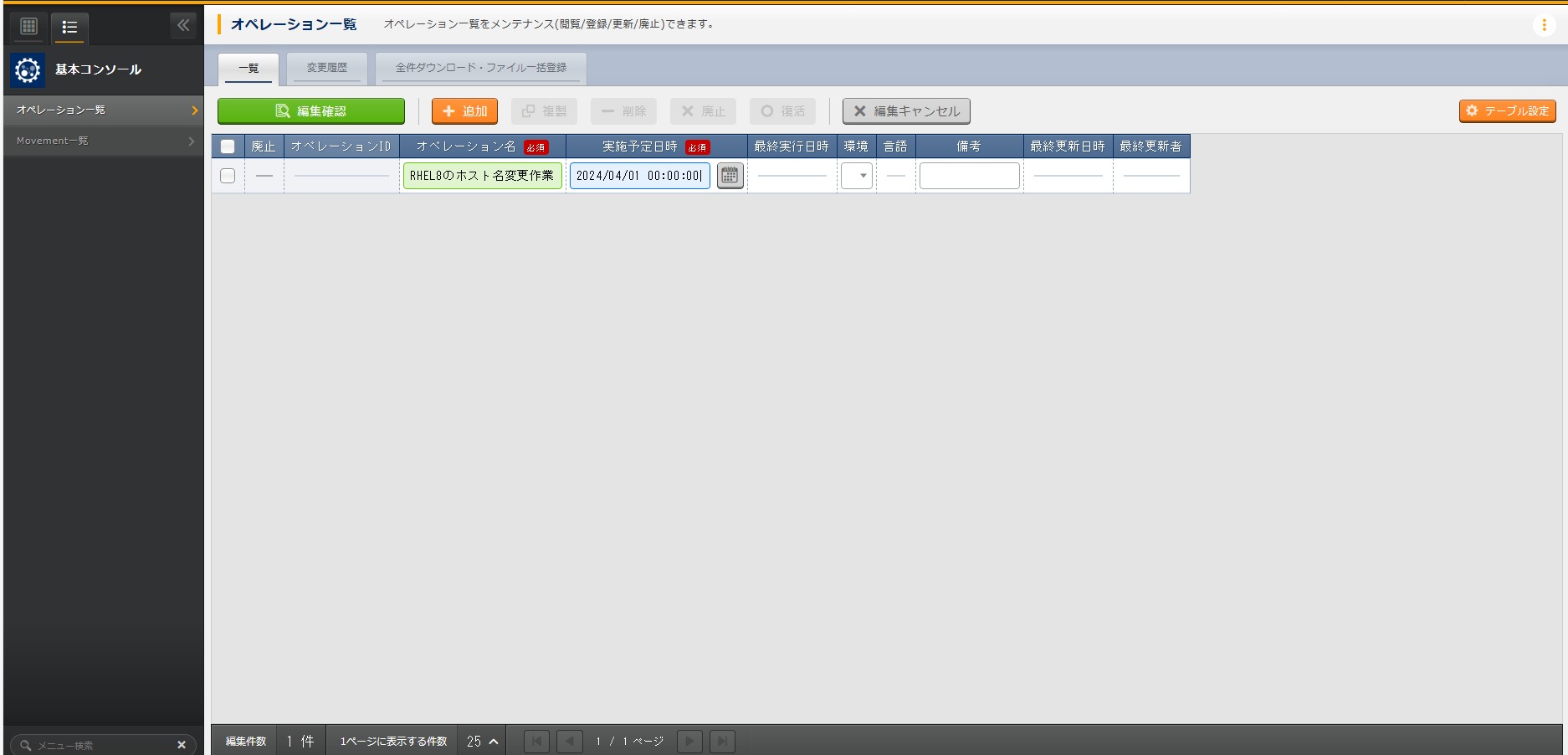

Basic Console ▶ Operation List, register the task execution date and time, as well as the task name.

Table 61 Operation Registration Details

Operation Name	Execution Schedule
RHEL8 Hostname Change Task	2024/04/01 12:00:00

Tip

In this scenario, the task execution date and time can be set arbitrarily. However, if the actual work date has been determined, it is recommended to set the exact scheduled execution date and time.

For tasks that are performed repeatedly, such as periodic operations, if the exact work date is not determined, it is acceptable to register the current date and time.

Set Parameters (1st time)

The parameter sheet is used to register the parameters to be configured for each device.

For the operation, select the task created in the task overview registration, such as RHEL8 Hostname Change Task. By selecting an operation, you can associate the target server and parameters with that operation.

In this scenario, the hostname server01 is set as the target server for the task.

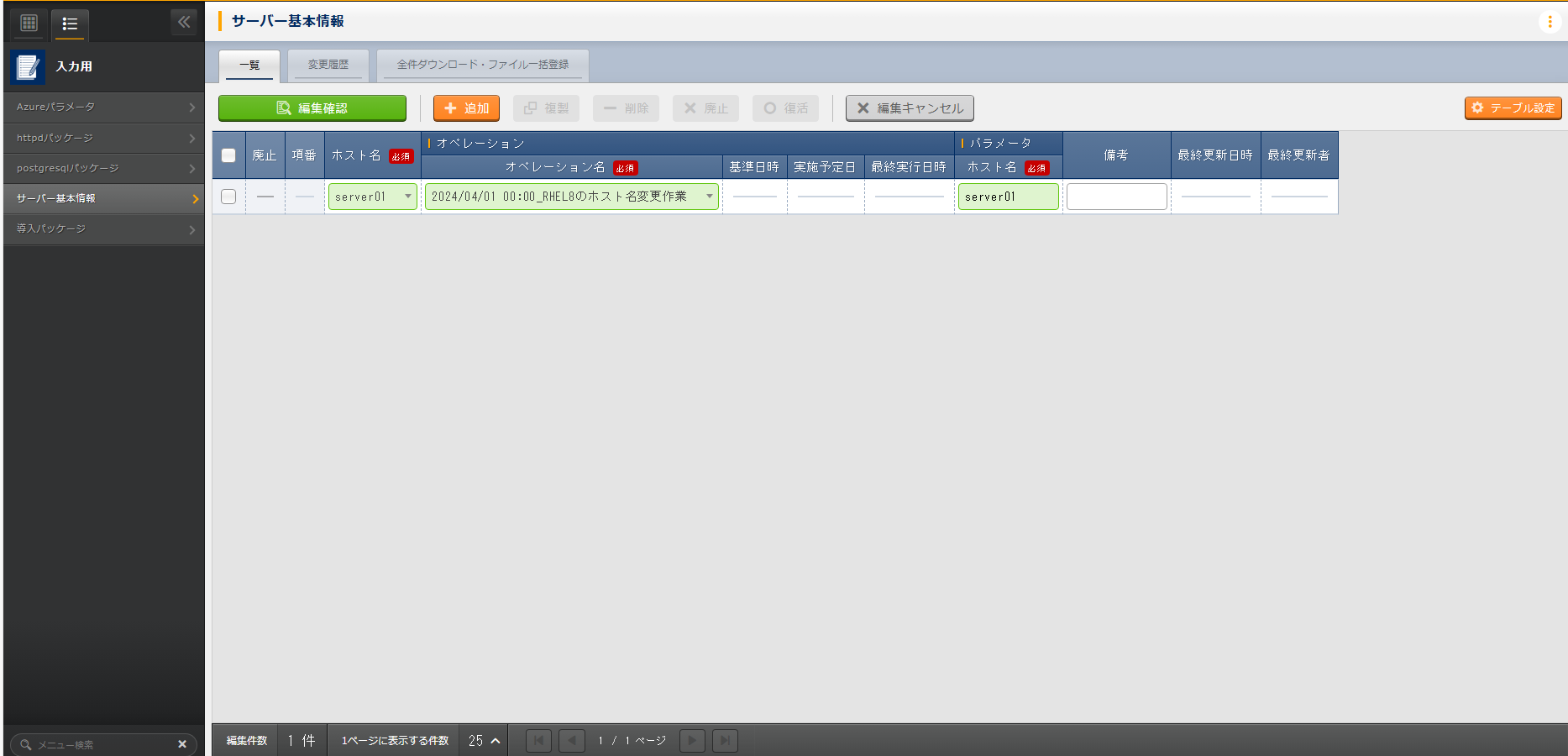

Input ▶ Basic Server Information, parameters are registered for the host.

Table 62 Basic Server Parameter Settings

Host Name	Operation	Parameters
	Operation Name	Host Name
server01	2024/04/01 12:00:00_RHEL8 Hostname Change Task	server01

Execute Task (1st time)

1. Pre-execution Check

   First, let’s check the current status of the server.

   Log in to the target server via SSH and check the current hostname.
   Listing 261 Command

   # Getting the Hostname
   hostnamectl status --static


   Listing 262 Execution Result

   # The results will differ between environments.
   localhost


2. Task Execution

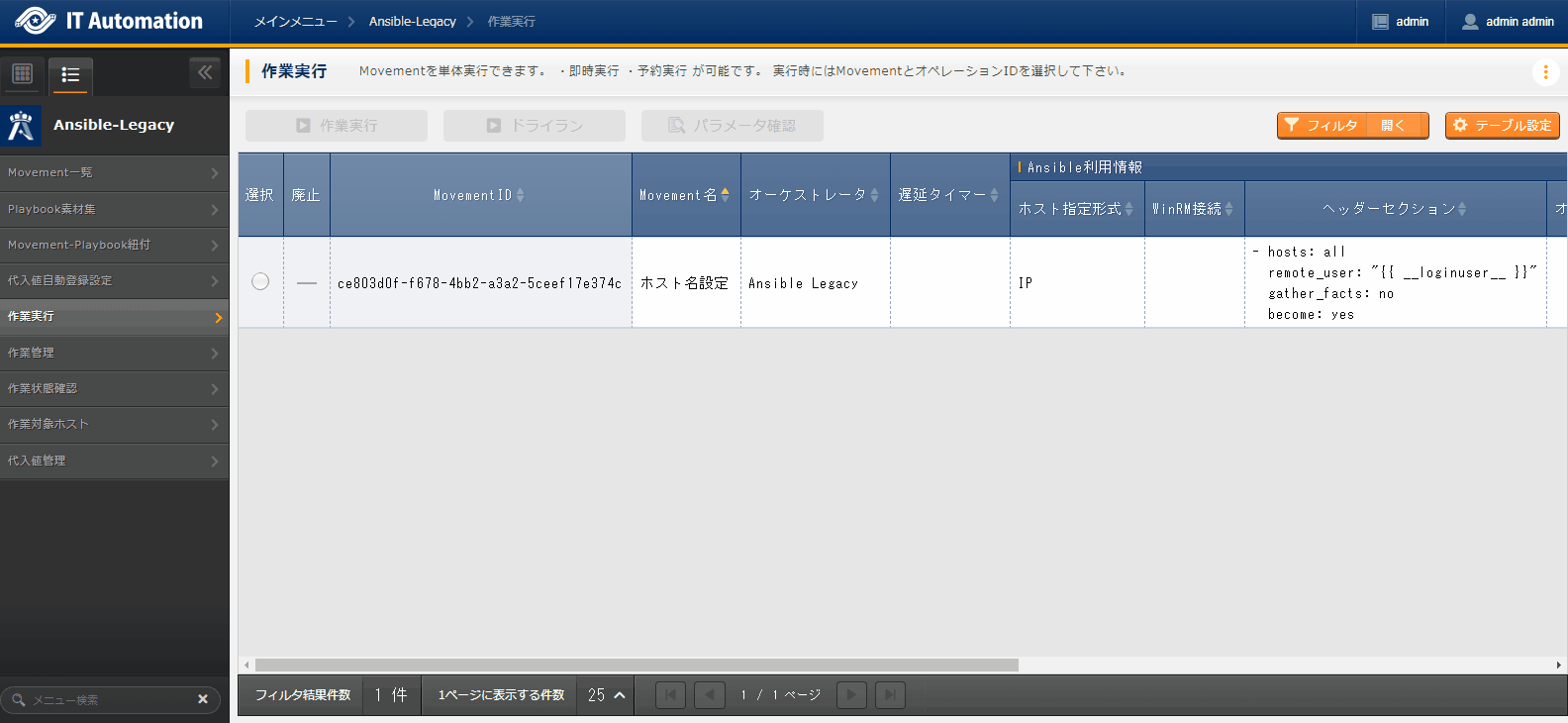

   Ansible-Legacy ▶ Task Execution, select the Setting the Hostname Movement, then click  Task Execution.

   Next, in Task Execution Settings, select RHEL8 Hostname Change Task for the operation, and click Confirm Selection.

   Finally, review the execution details and click Confirm Selection.
   Check Task Status After the screen opens and the execution is complete, verify that the status has changed to ‘Completed’.

1. Post-check

   Log in to the target server via SSH again and verify that the hostname has been changed.
   Listing 263 Command

   # Getting the Hostname
   hostnamectl status --static


   Listing 264 Execution Result

   server01


Repetitive task (2nd time)

Before considering specific parameter settings or task procedures, start by creating a work plan. First, let’s briefly organize the information: when, on which device, what will be done, and how it will be carried out.

Table 63 Task Policy

Execution Schedule	2024/05/01 12:00:00
Target of the Task	Target Server(RHEL8)
Task Details	Hostname Update

Register Operation Overview (2nd time)

During operation registration, the task overview for performing the work is defined. Create one operation per task. Operations should not be reused.

Enter the operation details based on the previously established work policy.

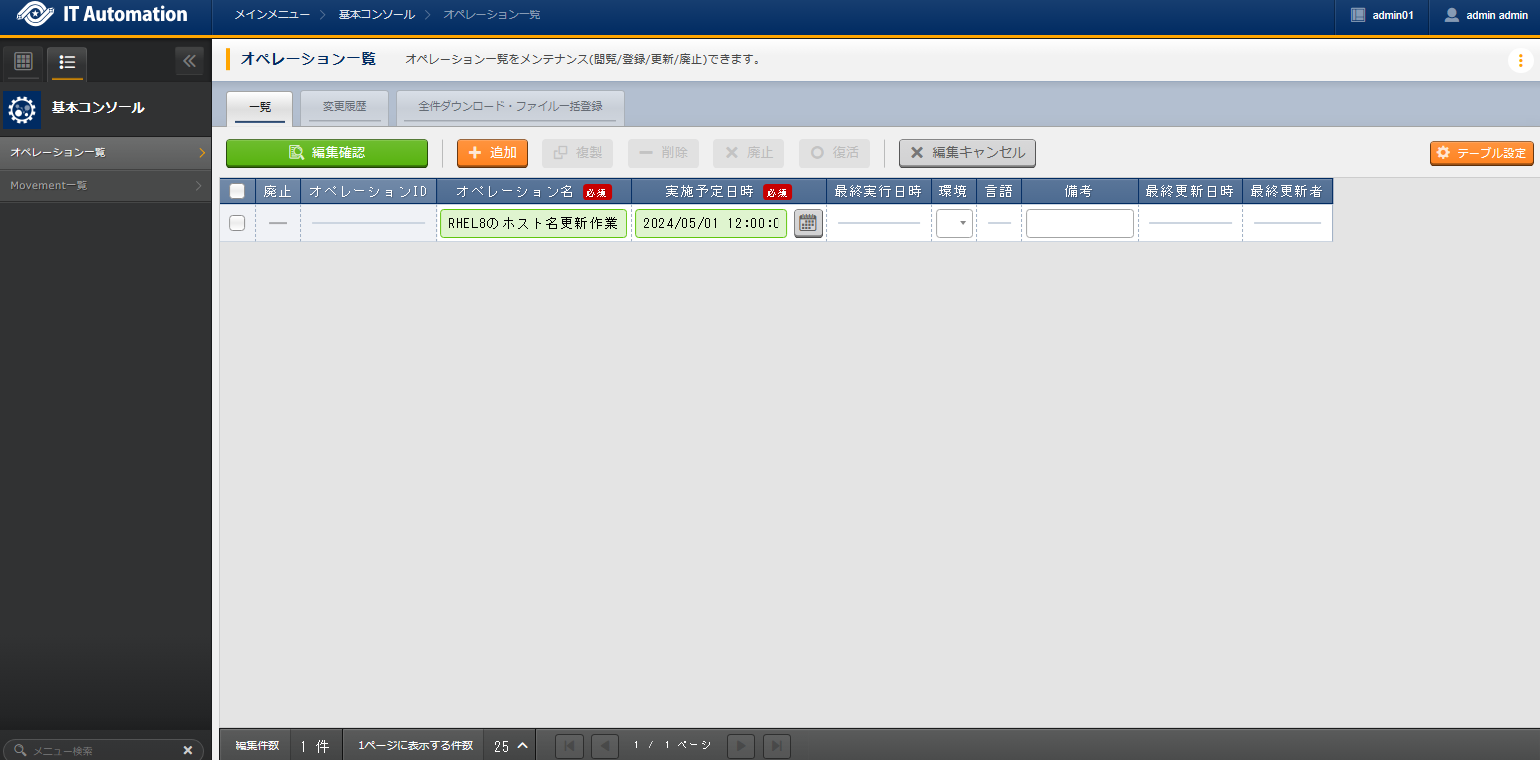

Basic Console ▶ Operation List, register the task execution date and time, as well as the task name.

Table 64 Operation Registration Details

Operation Name	Scheduled Date and Time
RHEL8 Hostname Update Operation	2024/05/01 12:00:00

Tip

For this scenario, any appropriate date and time can be used for the task execution date and time. However, if the work date is fixed, it is recommended to set the accurate scheduled execution date and time.

For recurring tasks such as regular maintenance where the exact work date is not determined, it is acceptable to register the current date and time.

Set Parameters (2nd time)

In this scenario, the hostname server01 was set as the parameter value.

However, the hostname is also managed in the Device List, resulting in duplicate management of the hostname.

In Exastro IT Automation, device information can be acquired via ansible_common_ita_original_variable, and the hostname of the target host can be obtained using the variable __inventory_hostname__. This enables centralized management of parameters.

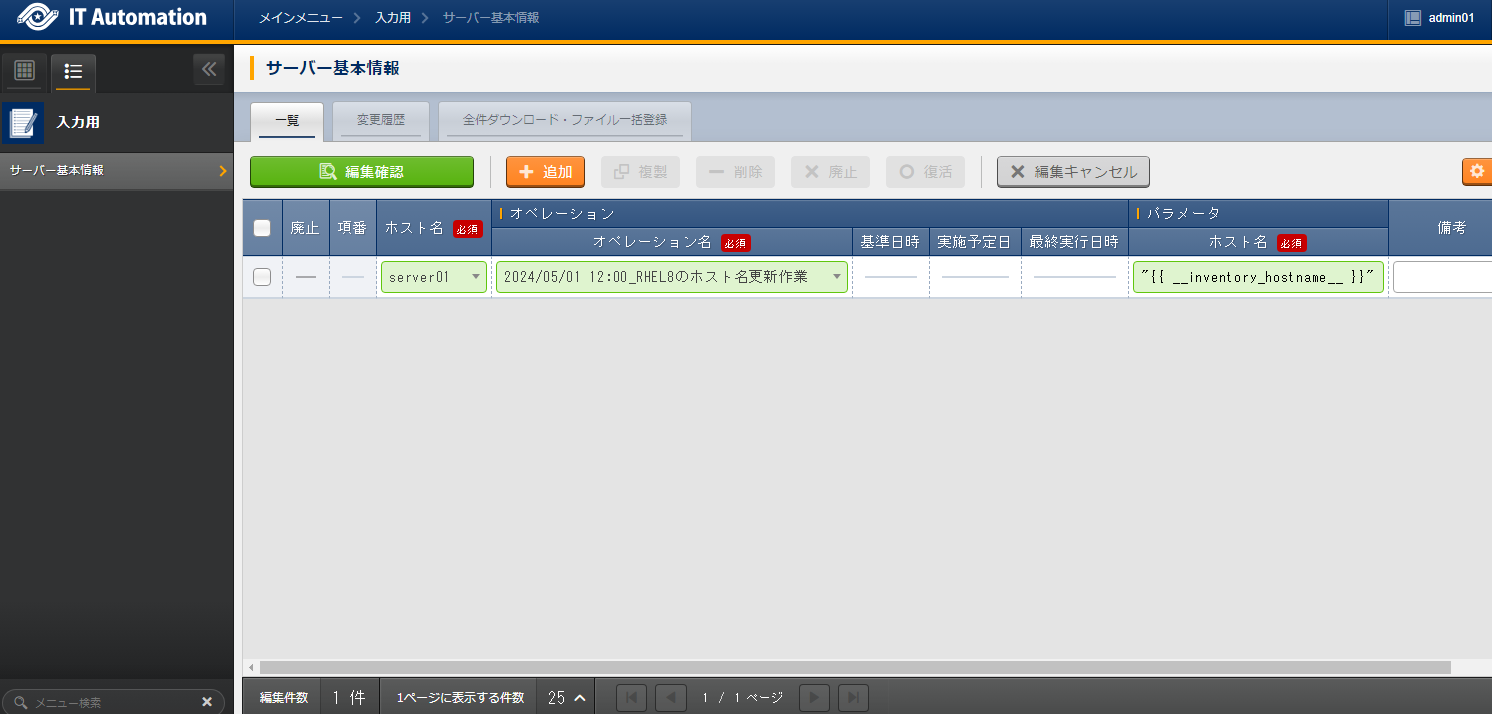

Input ▶ Basic Console, let’s register the hostname listed in the device list using the ITA-specific variables.

Table 65 Configuration Values for Basic Server Parameters

Host Name	Operation	Parameter
	Operation Name	Host Name
server01	2024/05/01 12:00:00_RHEL8 Hostname Update Operation	"{{ __inventory_hostname__ }}"

Using the __inventory_hostname__ variable enables referencing the host information stored in the device list.

Next, update the hostname of the target server to db01.

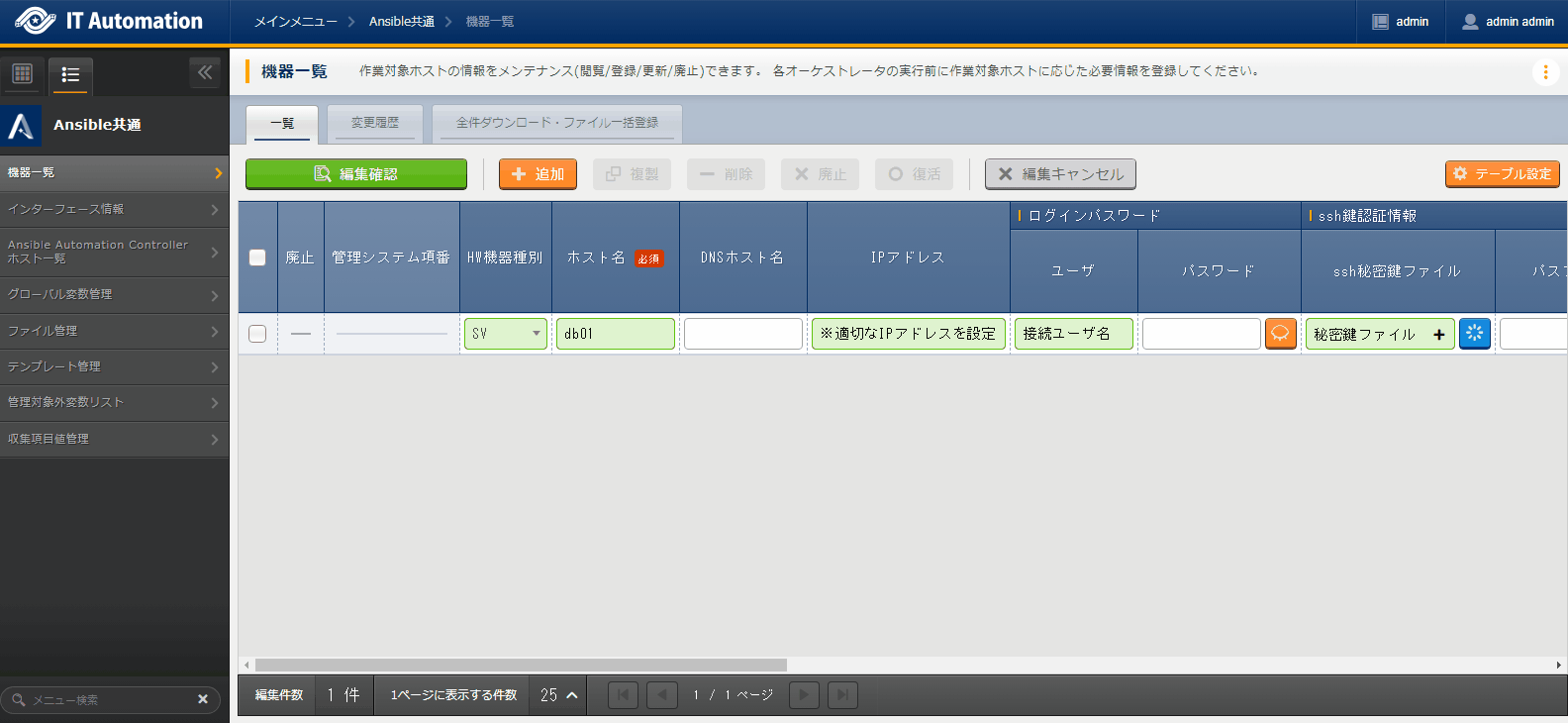

Ansible Common ▶ Device list, update the hostname of the target server to db01

Table 66 Configuration Values in the Device List

HWDevice Type	Host Name	IP Address	Login Password	ssh Authentication Key Info	Ansible Configuration Information
			User	ssh Authentication Key Info	Linkegacy/Role Usage Information
					Authentication Method
SV	db01	192.168.0.1 *Set the appropriate IP address	Connection Username	(Private Key File)	Key Authentication(No Passphrase)

Execute Task (2nd time)

1. Execute Task

   In Ansible-Legacy ▶ Execution, select the Host Name Setting Movement, and click  Working execution to run the task.

   Next, in Working execution setting, select the RHEL8 Hostname Update Task operation, then click Decision to select.

   Finally, review the execution detail, then click Working execution.
   Open the Check operation status, after the execution is complete, confirm that the status has changed to “Completed.”

1. Post-Execution Check

   Log in to the server again via SSH and verify that the hostname has been changed.
   Listing 265 Command

   # Getting the Hostname
   hostnamectl status --static


   Listing 266 Execution Result

   db01


The following steps, Ansible Common ▶ Device list, by simply changing the hostname and executing the task, you can update the hostname.

Overview

Through the scenario of setting the hostname on a RHEL8 server, you have learned the basic operation of Exastro IT Automation.

Additionally, you have learned about the greatest benefit of automation with Exastro IT Automation: improving efficiency by automating repetitive tasks.
